What is this interface used for?
The PCP interface is used to assess the human and ecotoxicological impacts of chemicals in personal care products (PCPs). There are 59 default products currently, including hand/face cream, bodywash, shampoo/conditioner, lip balm, eye makeups, toothpaste, deodorant, fragrance, sunscreen, nail products, etc. The human exposure pathways mainly include inhalation and dermal absorption by the product user, either adult or child depending on the product. For the ecosystem, exposure occurs mainly through products that are washed off down the drain after use, which go through the wastewater treatment plant (WWTP) and reach the freshwater.
How does this interface work?
The PCP interface is divided into two parts. The top part includes the model inputs, where the user enters inputs for the chemical, product, indoor and outdoor environments. The bottom part displays the model results, including exposure and risk results for the product user, as well as the human health impacts for different populations and the ecotoxicological impacts for aquatic organisms.
What are the inputs?
The inputs part has four blocks: Chemical, Product, Indoor settings and Outdoor region. The minimal inputs required from the user include the chemical’s CAS number (choose from a dropdown list), chemical’s mass fraction in the product, the product name (choose from a dropdown list). You ca also create your own product or select your indoor scenario.
The name of the indoor environment (by default “OECD countries average 2+1 children household”), and the name of the outdoor region (by default “Default USEtox”). After the user provides these inputs, more information will be automatically displayed, including the chemical name, product characteristics, usage data, and indoor configuration such as house volume, ventilation rate, and occupancy.
To create and use a custom product:
- (1) Click the "+" on row 19 to show the detailed product inputs.
- (2) Enter your custom values in the blue-colored cells from F16 to F36.
- (3) Click the button with blue fonts "Save user-input product".
- (4) Select from a dropdown list in cell E16 (the green-colored cell) the custom product name that you just created.
To create and use a custom indoor setting:
- (1) Enter your custom values in the pink-colored cells from L6 to L10.
- (2) Click the button with pink fonts "Save user-input indoor settings".
- (3) Select from a dropdown list in cell K6 (the green-colored cell) the custom indoor setting name that you just created.

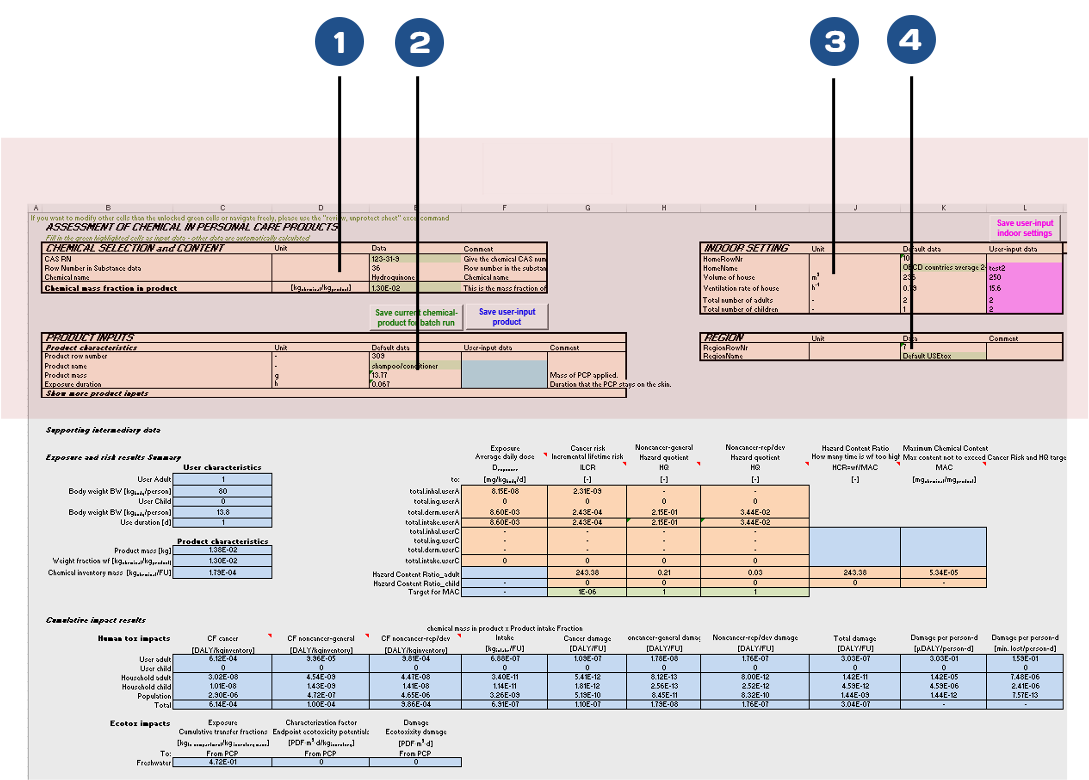

Inputs
- 1 Chemical
- 2 Product
- 3 Indoor settings
- 4 Outdoor region
What are the results?
The results part has two main sub-sections: Exposure and risk results summary, and Cumulative impact results.
The Exposure and risk results summary (A) presents the exposure in average daily dose for the user through different exposure routes, as well as the estimated cancer risk for cancer effects and hazard quotient for non-cancer effects. Also displayed are the maximum chemical content (MAC), which is the maximum chemical content in product not to exceed cancer risk and HQ targets, and the hazard content ratio (HCR), which shows how many times the actual chemical mass fraction is too high/low to reach the risk targets.
The Cumulative impact results (B) presents the human toxicity impacts and the ecotoxicity impacts. For human tox, results include the cancer and non-cancer characterization factors and damage in terms of disability-adjusted life years (DALYs) for 5 populations: user adult, user child, household adult, household child and the general population. For ecotox, results include the characterization factor and damage in terms of Potentially disappeared fraction of freshwater species integrated over exposed volume and time (PDF⋅m³⋅d).
The results part also has one hidden sub-section: Supporting intermediary data. It displays direct transfer fractions to relevant compartments, product intake fractions, chemical’s cancer slope factors and reference doses.

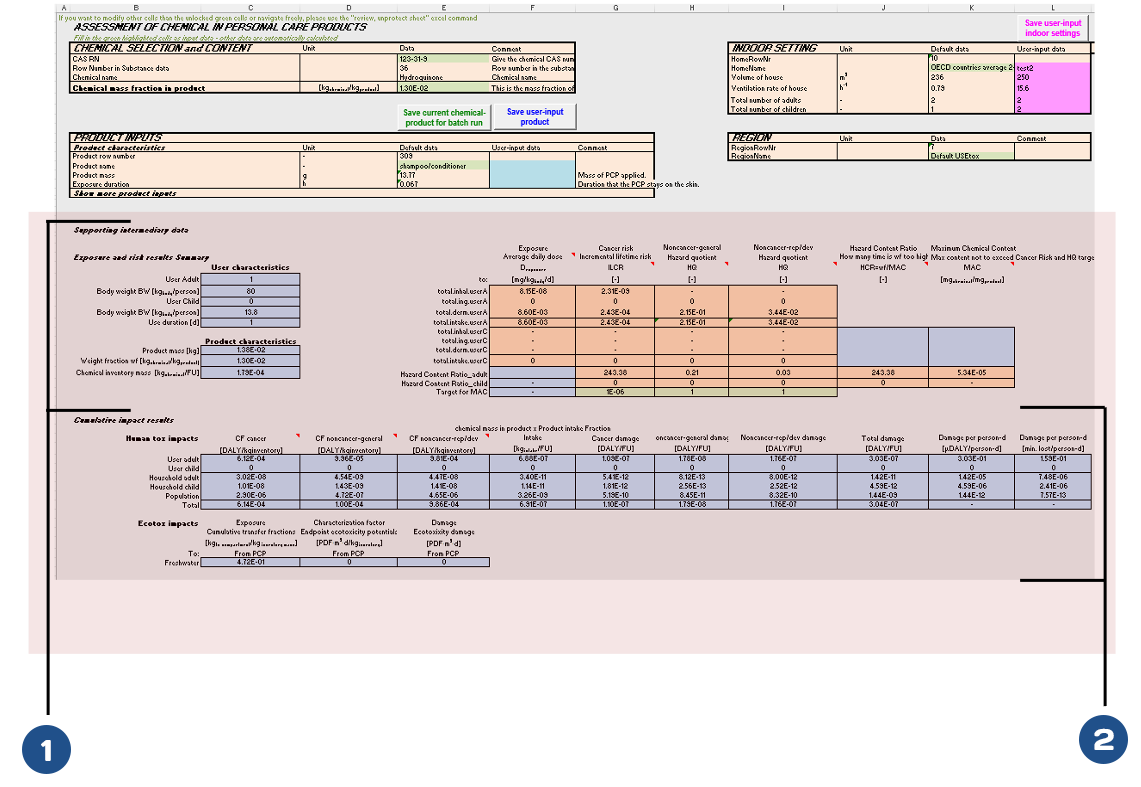

Results
- 1 Exposure & risk results
- 2 Cumulative impact results
